Excellent Sensitivity with Fast Cooling
High-Performance Differential Scanning Calorimetry Measurements
Robust heat-flux differential scanning calorimeters, the DSC-60 Plus series finds applications in research and development and quality control environments for characterization of polymers, pharmaceuticals, foods, etc. The DSC-60 Plus series provides high sensitivity, low noise, and a very stable baseline across the temperature range of -140 to 600°C due to the unique furnace construction and detector.
Included in the DSC-60 Plus series:

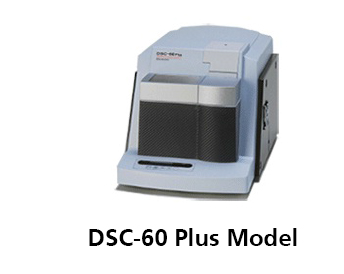

- DSC-60 Plus standard model

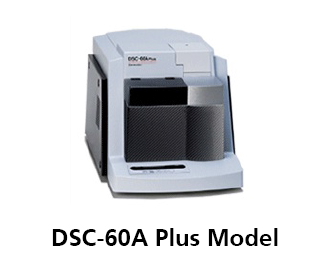

- DSC-60A Plus model with a 24 sample built-in autosampler
High-Sensitivity Measurements with a Wide Calorimetric Measurement Range
The noise level, less than 0.5 µW when held at 150°C, enables measurement of the smallest calorimetric changes. The large dynamic calorimetric measurement range of ±150 mW means materials with very large calorimetric changes can be characterized.
Automated Measurement Improves Efficiency
With the same footprint as the standard model, the DSC-60A Plus model has a compact, built-in autosampler which enables automated measurement, analysis, and report printout for up to 24 samples, improving the efficiency of product development and quality control activities.
Sub-Ambient Measurements Using Standard Cooling Chamber
The cooling chamber installed as standard on the DSC-60 Plus calorimeters permits measurement down to -140°C using liquid nitrogen. The sample loading temperature function enables quick sample exchange during sequential analysis without moisture condensation. For consecutive and cycled sub-ambient measurements, DSC-60 Plus models with auto-cooling systems are available.
PC Controlled TA-60WS Thermal Analysis Workstation
The TA-60WS thermal analysis workstation is the interface between the DSC-60 Plus series and PC. It includes easy-to-use data acquisition, data analysis, and reporting software. In addition, up to four Shimadzu thermal analysis instruments of any type can be controlled simultaneously by each TA-60WS.
Compliant with Analytical Laboratory Regulations Including US FDA 21 CFR Part 11
Software accompanying the TA-60WS thermal analysis workstation is available to comply with guidelines such as PIC/S GMP and electronic record and electronic signature (ER/ES) regulations, including US FDA 21 CFR Part 11.
Sample Pans for a Wide Range of Applications
To complement the DSC-60 Plus series, a wide range of sample pans, including ones composed of Aluminum, Platinum, Alumina, Nickel, Copper, and Quartz and hermetically sealed and pressure-proof pans, are available.
